KACO new energy has expanded its blueplanet product series with several completely redesigned devices, thereby introducing completely new performance classes to their product segment. Get an overview here:

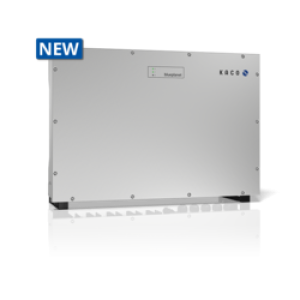

blueplanet 100 NX3 / 125 NX3
Currently, the new blueplanet-inverters are the only 100 kW ones "made in Germany". In addition to environmentally friendly production and increased robustness against disruptions in the supply chain, they stand out due to their first-class data security and customer-oriented services. The hardware is based on silicon carbide circuits with exceptionally high efficiency, while the derating at high temperatures has been significantly reduced. Furthermore, as an efficiency world champion in this category, they are unique with an overfill capability of 200%.
An overview of the technical features:
- Two power levels: 100 and 125 kVA for complex roofs
- efficiancy of 99,1 %
- 8/10 MPPTs for a flexible PV system design (2 Strings per MPPT)
- Broad DC voltage span: 200 V – 1000 V
- Broad AC voltage span: 305 V – 560 V
- Very late derating / no switch-off from 50 °C
- High number of interface options: LAN / RS485 / USB
- Light weight: 84 kg
The blueplanet 100 NX3 / 125 NX3 inverters are already available for ordering in our Onlineshop and will be deliverable by March. You can find more information, the datasheet, and an installation video here:
Link: YouTube installation manual
Link: Product page blueplanet 100 NX3 / 125 NX3
Link: Data sheet blueplanet 100 NX3 / 125 NX3

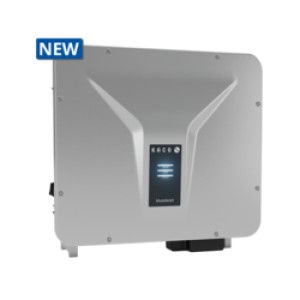

blueplanet 50.0 NX3 / 60.0 NX3
The smaller version of the inverter remains powerful and flexible despite its size, featuring 5 MPPTs, which ensure compatibility with various types of roofs. High efficiency, compatibility with bifacial and high-performance PV modules, as well as superior system yields also characterize these inverters. Their easy commissioning and updating via an app make them especially user-friendly. Additionally, they offer a variety of expansion options to suit individual needs.
An overview of the technical features:
- Two power levels: 50 und 60 kVA for complex roofs (including retrofitting)
- efficiancy of >98,2 %
- 5 MPPTs for a flexible PV system design (2 strings per MPPT)
- Broad DC voltage span: 200 V – 1000 V
- Active cooling– consumption <1W
- Intelligent shading management – Improved yields under less than ideal conditions
These versions are expected to be available for delivery by July. For more information, please visit the product website or refer to the brochure:
Link: Product page blueplanet 50.0 NX3 / 60.0 NX3
Link: Productdatasheet blueplanet 50.0 NX3 / 60.0 NX3
This expanded offer for installers provides a broader palette of high-quality solutions for their customers. Thanks to their flexible Multi-MPPT technology, the new blueplanet inverters are an excellent fit for complex photovoltaic roof systems on commercial and industrial buildings. They offer numerous expansion options and are compatible with bifacial high-performance PV modules. The SiC technology makes them efficiency top performers and ensures superior system performance. Products from KACO new energy are renowned for their reliability and high performance, and the new performance classes ensure that installers are provided with the best tools for their projects.
The service portfolio and the digital tools from KACO
With 25 years of experience in solar inverter development, the company employs outstanding test programs and modern cybersecurity technology. In addition to their customer service, KACO new energy offers a broad palette of services. Furthermore, KACO supports you with planning PV systems. With the help of the blueplanet PV-designer, you can easily plan new systems or the repowering of existing ones. The string sizing tool selects suitable components and then performs the necessary calculations.
You can get a comprehensive overview of KACO's services and the KACO planning tools here:
Link: KACO Service-Portfolio
Link: KACO Planning tools
KACO new energy celebrates 25th anniversary
Congratulations to KACO on celebrating their 25th anniversary! This milestone symbolizes a quarter of a century of innovation, quality, and German commitment in renewable energies. We look forward to many more successful years of working together!
If you would like to place an order or have any questions regarding the availability of KACO inverters, our sales team is looking forward to helping you. You can find the purchase conditions and the quantity of devices in our stock in our online shop QuickShop.
We look forward to hearing from you soon!
