Our new module partner DMEGC Solar has further refined its Infinity RT series. The bifacial N-type glass-glass modules G12RT-B48, which replace the previously available M10RT-B54 models, are now available from us in three versions: as a full-black version, with transparent or white backsheet.
The products at a glance
The following products are available, all of which are characterized by exceptional efficiency, outstanding reliability, and increased performance:
| G12RT-B48HBB | G12RT-B48HBT | G12RT-B48HBW | |
|
|
|
|
|
| Power | 455 Wp | 455 Wp | 460 Wp |
| Type | glass-glass, N-type, bifacial | ||
| Design | full-black | black frame, transparent backsheet | black frame, white backsheet |
| Efficiency | 22.8 % | 22.8 % | 23.0 % |
| Dimensions / Weight | 1,762 x 1,134 x 30 mm / 24.0 kg | ||
| Warranty | 25-year product & 30-year linear output warranty | ||
| Datasheet | Link | Link | Link |

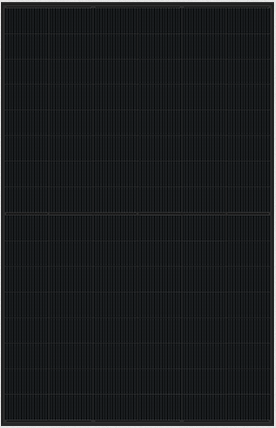

In addition to a good temperature coefficient, the “revised” Infinity RT series also offers outstanding performance in poor lighting conditions. The fullblack module is also equipped with “Advanced Black Technology”, giving it a particularly elegant appearance on the roof.
You can find more information about the products on the DMEGC Solar product page.
New cell format:
Higher currents – lower voltage
The products' dimensions, frame construction, and mechanical properties that are known from the previous model remain unchanged. Differences arise primarily from the different wafer size — and thus from the electrical properties.
DMEGC Solar is now using larger G12R cells, which also reduces the number of cells in a module from 54 to 48. The result: Due to the larger surface area per cell in the G12RT-B48, the current and short-circuit current (Imp/Isc) are higher than in the M10RT-B54. However, compatibility is ensured with standard inverters on the market that are set for currents of 16 to 20 A.
In addition, the voltage (Vmp/Voc) is lower than in the previous model due to the smaller number of cells connected in series.
Available from October
The full-black HBB module, which we anticipate to be in high demand, is expected to be in stock and available from mid-October. The HBT model (with transparent backsheet) and the HBW model (with white backsheet) are expected to follow at the end of October, albeit in smaller quantities.
All three modules can be ordered as of now.
As usual, you can find your purchasing conditions and information on availability in our QuickShop. Our sales team looks forward to receiving your inquiries and orders.
