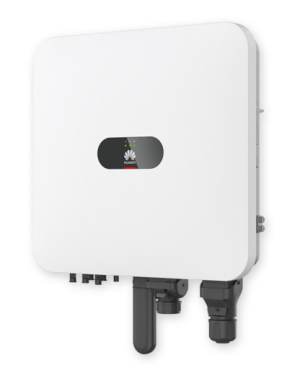

With the new SUN2000-MAP0, our partner Huawei has launched a series of hybrid inverters that offers a three-phase backup solution in addition to the proven features.
The new product is available in power classes from 5-12 kW, making it suitable for a wide range of system sizes.
Thanks to the three-phase unbalance, the inverter is able to provide a stable power supply for various devices without relying on the grid. Optimization of power allocation improves energy utilization efficiency.
The storage expansion option allows surplus energy to be stored if required and used at night or during power outages. The inverter is compatible with the LUNA2000-S0 and LUNA2000-S1 batteries.
Together with the Smart Guard 63A-T0 box, the inverter can be expanded into a three-phase backup power solution. This gives it an advantage over the SUN2000-KTL-M1, whose backup power solution is only single-phase.
In addition, the SUN2000-MAP0 ensures constant operation even in the event of sudden power surges thanks to its resistance to inrush current. Permanent overload is possible up to 110% of nominal power, depending on the power class, 150% of nominal power can be supported for up to 5 minutes and 200% for 10 seconds.
Technical key figures:
- 5 power classes: 5K, 6K, 8K, 10K, 12K
- Input voltage: 1100 V
- MPP tracker: 2
- MPPT voltage range: 160-1000 V
- Efficiency: 98.6%
- Overvoltage protection: Type II (AC and DC)
- Interface options: RS485, WLAN / Ethernet via Smart Dongle-WLAN-FE (optional), 4G/3G/2G via Smart Dongle-4G (optional), EMMA (optional)
- Protection class: IP66
- Weight: 21 kg
- Product warranty: 10 years
Further details about the product, such as the technical documentation with the data sheet, can be found on the Huawei product page.
The new inverter series is currently available in small quantities. The well-known M1 series will continue to be available without restriction. You can find your purchasing conditions and information on availability as usual in our QuickShop. Our sales team is looking forward to your inquiries and orders.
