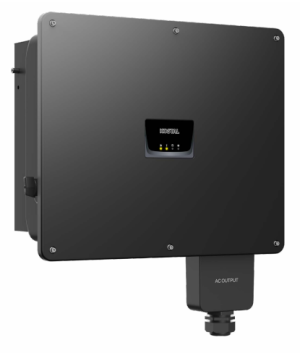

With the new generation of the PIKO CI series, KOSTAL is launching two powerful commercial inverters onto the market: the PIKO CI 30 G2 and the PIKO CI 50 G2. The devices impress with proven KOSTAL quality, a well thought-out design for commercial roof systems, and innovative functions that make installation, commissioning, and operation even more efficient.
The highlights at a glance
- Available in 30 kW and 50 kW power classes
- 3-phase with up to four MPP trackers
- Wide input voltage range from 200–1100 V
- DC overloading up to 150 % for higher yields
- Integrated type 2 DC overvoltage protection
- AC disconnect device in the device
- Free app commissioning via Bluetooth
- System monitoring via the KOSTAL Solar Portal
The G2 inverters offer a wide input voltage range from 200 to 1100 V, with the 50 kW model supporting up to four MPP trackers. DC-side overloading of up to 150 % enables even greater energy yields on commercial rooftops. This makes it easy to implement complex system layouts with multiple strings and differing module orientations. Integrated type 2 DC overvoltage protection on all inputs, along with an AC disconnection device, provide a high level of operational safety. Additional protection is ensured through comprehensive grid monitoring.
The new generation also impresses during installation with practical improvements: A newly developed housing provides a generously sized connection area and enables streamlined cable management. The tool-free mounting bracket speeds up on-site work and minimizes potential errors. Commissioning is carried out effortlessly via Bluetooth using the new KOSTAL Solar App – intuitive, quick, and with no additional hardware required. For system monitoring, the free KOSTAL Solar Portal offers detailed visualizations of yields and operating data – ideal for those looking to manage and analyze their PV system effectively.
The models in comparison
| PIKO CI 30 G2 | PIKO CI 50 G2 | |
| AC nominal power | 30 kW | 50 kW |
| Number of MPP trackers | 3 | 4 |
| Efficiency | 97.8 % | |
| Communication interfaces | RS485, Modbus TCP, Ethernet, optional WiFi | |
| Dimensions / Weight | 530 (707) x 635 x 224 mm / 33.1 kg |
530 (707) x 635 x 224 mm / 44.3 kg |
Further details about the product can be found in the data sheet, in the brochure, and on the product page.
The inverter is already available from stock. As usual, you can find your purchasing conditions and information on availability in our QuickShop. Our sales team looks forward to receiving your inquiries and orders.
