The Tiger Pro 54HC (405 Wp) and Tiger N-Type 60TR (365 Wp) are two new highly-efficient mono-crystalline modules in the line-up of the Chinese manufacturer JinkoSolar. Alongside their high efficiency they score top marks in durability and resilience combined in an easy-to-handle design – ideal for installation and operation in harsh weather conditions.
The new Tiger modules side-by-side
 |
 |
|
| Tiger Pro 54HC | Tiger N-Type 60TR | |
| Specifications | 1722 x 1134 x 30 mm|22kg | 1692 x 1029 x 30 mm|19kg |
| Performance | 405 Wp | 365 Wp |
| Efficiency | 20,74 % | 20,96 % |
| Cell type |
P-type mono-crystalline | N-type mono-crystalline |
| Warranty |
15 year product warranty 25 year linear power warranty |
25 year product warranty 30 year linear power warranty |
| Load | Maximum wind/snow loads of up to 2,400 Pa/5,400 Pa | |
| Availability | November 2021 | September 2021 |
| Datasheet |
Link | Link |
Tiger Pro 54HC: Big performance in a small package
Up to 405 Wp with an efficiency rate of 20,74 % place the Tiger Pro 54HC’s 108 half-cells in the upper echelons of performance among similar PV modules. Additional support comes from the multi-busbar technology which reduces material in the frame for less shading and even better light absorption. The compact design of the module makes it particularly installer-friendly and highly resistant to extreme wind and snow loads.

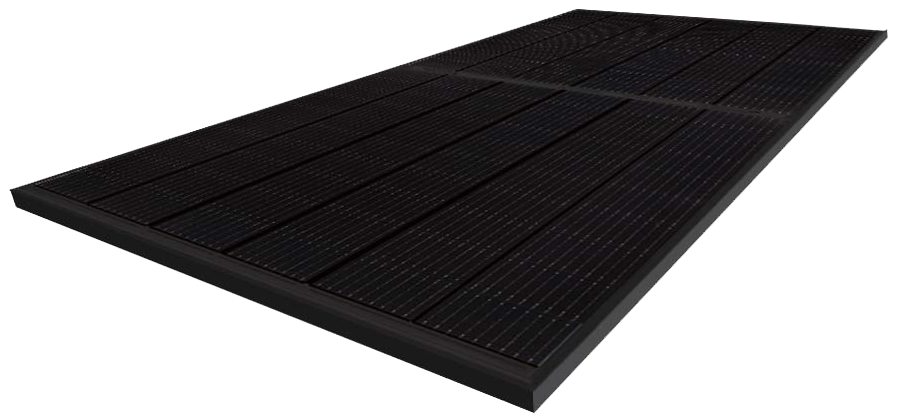

Tiger N-Type 60TR: All black everything
The Tiger N-Type 60HC’s all black look is not only an eyecatcher, but also boosts its productivity. The entirely black appearance comes from the “Tiling Ribbon”-technology: Here, individual cells are shingled over each other without leaving gaps and roundly shaped ribbons reflect more light rays back into the modules in comparison to a conventional rectangular shape.
In combination with the multi-busbar technology, this results in a maximally efficient module with a long service life. This durability is reflected in the manufacturer's guarantee periods, with a 25-year product warranty and a linear performance warranty of 30 years – with only 0.4 % annual degradation. The N-type cell technology in combination with Hot 2.0 technology also reduces LID/LETID effects.
The established Tiger LM series with 365-375 Wp remains available for your projects.
For further information on these modules please consult the corresponding datasheets (54HC) (60TR) or the manufacturer’s website.
You can find your purchasing conditions in our calculation tool QuickCalc is available for you in our EWS partner area. Our sales team is looking forward to your orders and inquiries.
