01.08.2025 - Package solutions for ground-mounted systems: N-Rack Kits from K2 Systems




Although rooftop systems account for the majority of installations, mounting systems for other areas of application are increasingly in demand. In addition to mounting systems for flat and pitched roofs, K2 Systems also offers stable and easy-to-implement customised solutions. For the quick and economical realisation of smaller ground-mounted projects or off-grid systems, you will now find two pre-assembled kits in our QuickShop: the N-Rack 2.20 CS and the N-Rack 2.20 C.

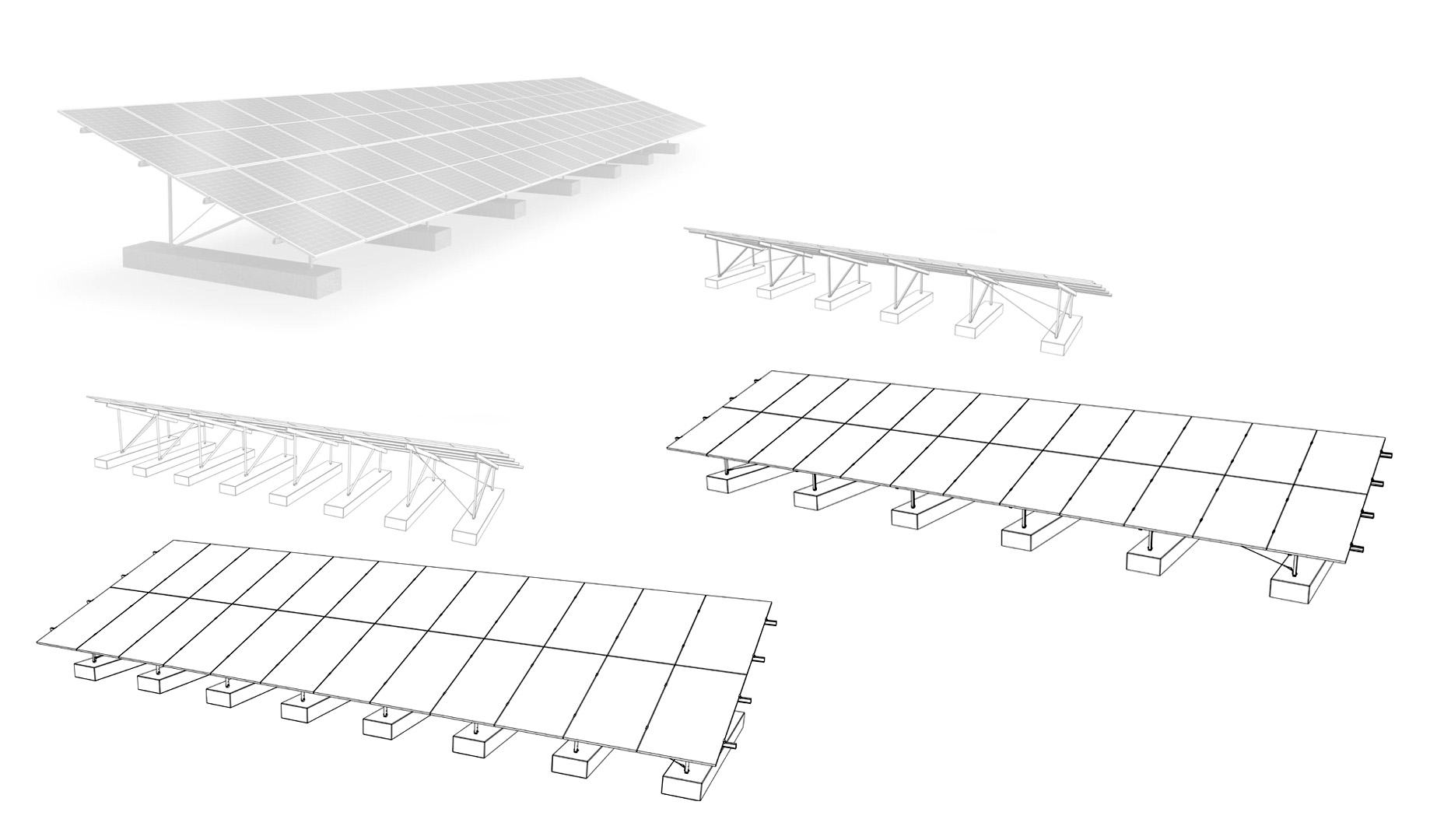

Complete set for 24 modules

The N-Rack 2.20 CS can be used for modules with a length of up to 1,905 mm, while the N-Rack 2.20 C is designed for larger modules (from 1,906 mm). Both kits are suitable for a configuration with 2 × 12 modules at a 20° inclination, i.e., the mounting system is to be implemented per rack with two rows of modules in portrait orientation. All necessary materials are included in the sets. The 6 or 8 triangles in the kit (number depends on the product) are mounted on concrete foundations. These must be provided by the customer and are not included in the scope of delivery. Details on dimensions and other important information on implementation can be found in the assembly manual.







The N-Rack 2.20 C/CS are designed for a load of 1.75 kN/m² of snow with a wind load of 0.67 kN/m². Given that these conditions are met, you can install these kits conveniently, easily, and economically in many locations without project-specific planning or calculations.

Product details at a glance

  • Two complete sets for module types with a length of 1.905 mm (N-Rack 2.20 CS) and larger (N-Rack 2.20 C)
  • 2.20: Two rows of modules, each with 12 modules in portrait orientation per rack, 20° inclination
  • Flexibly adjustable aluminum components (easy to work with and cut to size)
  • Symmetrical, statically optimized components
  • Scope of delivery N-Rack 2.20 CS Set: Beam 3020; Brace 715, Brace 1370, Brace 1696, CrossRail 73 in 4.55 m and 5.00 m, as well as a small parts set
  • Scope of delivery N-Rack 2.20 C Set: Beam 3750, Brace 715, Brace 1625 and Brace 2072, as well as CrossRail 73 in 4.55 m and 5.00 m and a small parts set

You can find your purchasing conditions and information on availability in our QuickShop. Our sales team looks forward to receiving your inquiries and orders.



Support for larger ground-mounted projects

We recommend using N-Rack Kits for projects up to 500 kWp. Please note that larger projects with individual requirements (e.g., foundation and load requirements) require project-specific planning. In this case, a project request sent to us must include the completed checklist (see link below).

Link: K2-Checklist Ground

Link: Product Page N-Rack System

Link: Assembly Manual N-Rack System (Concrete foundations)
