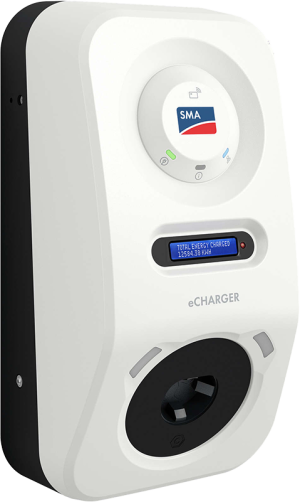

The new PV-optimized SMA eCharger makes the transition to EV installations effortless. From hassle-free installation to user-friendly management, it is designed for convenience and longevity. Thanks to intelligent charging modes and automatic phase switching, the full charging power of the sun can be unlocked and used efficiently.
![](index.php?rex_media_type=pic_300&rex_media_file=sma_echarger.png)
The intelligent charging modes adapt to the user's needs thanks to forecast-based operation. The system offers the following options: Charging with solar energy surplus, fast charging or targeted charging.
Thanks to automatic phase switching, it also enables charging with low solar power for higher self-consumption and thus more cost-effective mobility and faster amortization of the solar system.
The boost function allows vehicles to be charged up to twice as fast as with conventional wallboxes while making optimum use of grid and solar power. In addition, up to three SMA eChargers can be operated in one energy system with the Sunny Home Manager 2.0.
Both installers and users benefit from maximum safety, reliability and utmost convenience. Planning with Sunny Design is quick and installation is flexible. Operation is safe and reliable thanks to RFID authentication, SMA Smart Connected, integrated shutter in the charging socket and blackout protection. At the same time, the SMA eCharger is always up to date thanks to over-the-air updates.
Other product features:
- 5-year warranty
- Charge power: 38 kW to 22 kW (configurable)
- Type 2 charging socket with shutter
- Degree of protection IP54 for outdoor use
- Compatible with external type A (IEC 62955) residual-current devices
- Internal 6mA DC residual current detection
- System compatibility with Webconnect, SMA Sunny Home Manager 2.0
Compared to the SMA EV Charger, the SMA eCharger has a number of advanced functions that make charging and operation even more convenient. Both devices feature automatic phase switching, intelligent charging modes and the boost function. However, thanks to its networking, the new eCharger is easier to use and is always up to date.
The most important technical differences in comparison:
Technical data | SMA EV Charger | SMA eCharger |
Vehicle connection | Plug type 2 | Type 2 charging socket with shutter |
Communication | Ethernet, Wi-Fi | Ethernet (2 ports), Wi-Fi, RS485; Backend and vehicle communication |
Degree of protection (according to IEC 60529) / impact resistance | IP 65 / IK 08 | IP 54 / IK 10 |
Operating temperature range | -25°C to +40°C | -25°C to +50°C |
Max. permissible value for relative humidity | 100 % | 95 % |
Charging cable | Integrated 5.0 m | Optional 5.0 m / 7.5 m / 10.0 m |
Control system | Sunny Portal | Sunny Portal, SMA Energy App, SMA 360° App |
Integrated energy meter | MID-compatible | MID-compatible (expected to follow early 2025) |
The new eCharger can now be ordered from us and is expected to be available at the end of August. As usual, you can find your purchasing conditions in our QuickShop.
Our sales team looks forward to your inquiries and orders.
Link: Product datasheet SMA eCharger
Link: Product page SMA eCharger
