Product details

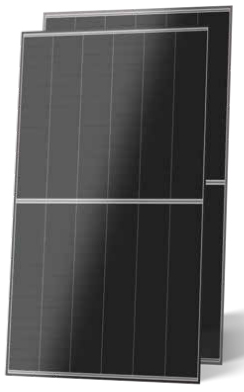

Jinko Tiger Neo 3.0 48QL6-DV N-Type 475Wp (Scratches in Frame)
Item no.: JKM475N-48QL6-DV_B
Power: 475 Wp
Appearance: Frame: black, Foil: white
Laminate composite: Glas-Glas
Availability: 1 pcs.80
70
60
50
40
30
20
10
0
23.10.08.11.25.11.11.12.27.12.12.01.29.01.14.02.02.03.18.03.04.04.20.04.
Prices are only visible to business customers after successful Registration. You can find prices after logging in to QuickShop.
Technical information
DimensionsWidth: 1.134 mm
Height: 1.762 mm
Frame height: 30 mm
Weight: 24,4 kg
PropertiesPower (STC): 475 Wp
Module efficiency: 23,77 %
Cell technology: mono N-Type
Frame colour: black
Foil colour: white
Temperature coefficient: -0,24 %/°C
Max. system voltage: 1.500 V
Max. static load: 6.000 Pa
Max. dynamic load: 4.000 Pa
Further information
DatasheetJinko Tiger Neo 3.0 48QL6-DV N-Type 475Wp (Scratches in Frame)
Manufacturer overviewProducts and news from JinkoSolar
Download centerDownload links from JinkoSolar
