Product details

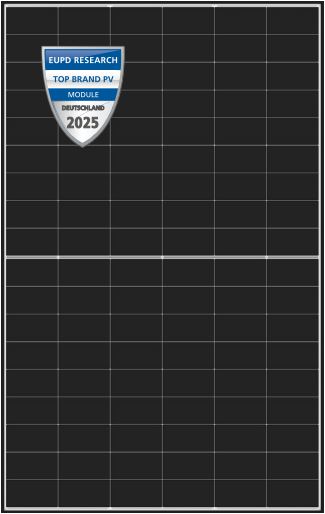

Luxor ECO LINE PRIME M108 TOPCon, Back Contact, 485Wp, bifacial, white mesh

Luxor

Luxor ECO LINE PRIME M108 TOPCon, Back Contact, 485Wp, bifacial, white mesh

Item no.: LD16986

Power Power: 485 Wp
Appearance Appearance: Frame: black, Foil: white
Laminate composite Laminate composite: Glas-Glas
Availability Availability: 181 pcs.
200
175
150
125
100
75
50
25
0
19.11.05.12.22.12.07.01.23.01.08.02.25.02.13.03.29.03.14.04.01.05.17.05.

Prices are only visible to business customers after successful Registration. You can find prices after logging in to QuickShop.

Technical information

Dimensions
Width: 1.134 mm
Height: 1.800 mm
Frame height: 30 mm
Weight: 24,5 kg
Properties
Power (STC): 485 Wp
Module efficiency: 24,08 %
Cell technology: mono N-Type BC
Frame colour: black
Foil colour: white
Temperature coefficient: -0,2 %/°C
Max. system voltage: 1.500 V
Max. static load: 6.000 Pa
Max. dynamic load: 4.000 Pa
Performance guarantee: 30 years
Product guarantee: 30 years

Further information

Datasheet

Luxor ECO LINE PRIME M108 TOPCon, Back Contact, 485Wp, bifacial, white mesh
