Product details

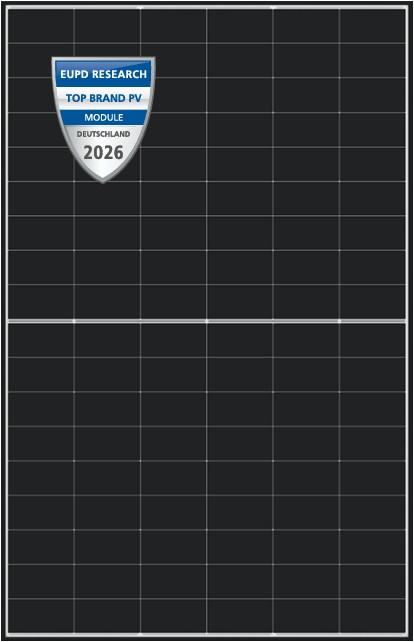

Luxor ECO LINE PRIME M108 HJT, Back Contact, 500Wp, bifacial
Item no.: LD17060
Power: 500 Wp
Appearance: Frame: black, Foil: white
Laminate composite: Glas-Glas
Availability: Currently unavailable2000
1750
1500
1250
1000
750
500
250
0
19.10.04.11.21.11.07.12.23.12.08.01.25.01.10.02.26.02.14.03.31.03.16.04.
Prices are only visible to business customers after successful Registration. You can find prices after logging in to QuickShop.
Technical information
DimensionsWidth: 1.134 mm
Height: 1.800 mm
Frame height: 30 mm
Weight: 25,5 kg
PropertiesPower (STC): 500 Wp
Module efficiency: 24,26 %
Cell technology: mono N-Type
Frame colour: black
Foil colour: white
Temperature coefficient: -0,21 %/°C
Max. system voltage: 1.500 V
Max. static load: 6.000 Pa
Max. dynamic load: 4.000 Pa
Further information
DatasheetLuxor ECO LINE PRIME M108 HJT, Back Contact, 500Wp, bifacial
Manufacturer overviewProducts and news from Luxor
Download centerDownload links from Luxor
