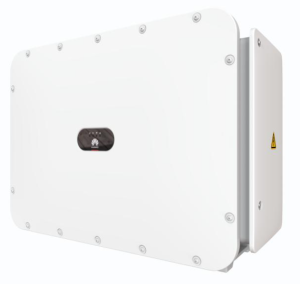

With the SUN2000-150K-MG0 inverter, Huawei offers a new inverter for commercial and industrial PV systems that is characterized by high efficiency and performance. In combination with the FusionSolar management system, the three-phase inverter optimizes the energy efficiency and control of your PV systems.
In addition to real-time data analysis and efficient maintenance, its multi-peak MPPT algorithm ensures maximum efficiency without compromising performance. The AI-supported arc fault interrupter also enables precise fault location and fast shutdown for risk management. Thanks to protection class IP66, it is also designed for use in up to 100 % humidity, temperatures from -25 °C to +60 °C and altitudes of up to 4000 meters.
Technical key figures:
- Efficiency: 98.8 %
- MPP tracker: 7
- Number of inputs per MPP tracker: 3
- AC rated active power: 150 kW
- AC apparent power: 165 kVA
- Interface options: RS485, USB, Smart Dongle - 4G / WLAN (optional), integrated WLAN + FusionSolarApp
- Weight: <99 kg
Further highlights at a glance:
- DC-to-ground protection: Short-circuit shutdown within 15 ms
- Residual current protection: Residual current monitoring
- Smart Connector Level Detection (SCLD): Temperature monitoring AC & DC terminals (threshold 95°C)
- Module-Level Insulation Detection: Risk check, triggering <1 kOhm
- Module-level rapid shutdown with optimizers (RSD): Shutdown of the strings to a safe voltage in <30 sec
- Smart String Level Disconnector (SSLD): tripping in the event of reverse polarity / reverse current / short circuit
- AFCI: Arc fault detection up to 450 m
Further details on the product can be found in the data sheet and on the product page.
The inverter is already available from stock. As usual, you can find your purchasing conditions and availability in our QuickShop. Our sales team looks forward to your inquiries and orders.
