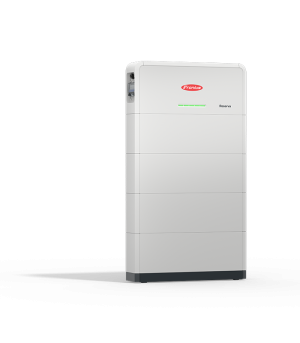

With the Reserva battery system, our partner Fronius is rounding off its product portfolio and can now offer a complete PV system from a single source. The components are perfectly matched to ensure seamless configuration and installation, as well as efficient operation.
The Fronius Reserva can consist of two to five modules with 6.3 to 15.8 kWh per tower. By connecting four towers in parallel, the system can be expanded to up to 63 kWh. DC coupling enables maximum efficiency and, thanks to the lithium iron phosphate cell chemistry, the battery system is particularly durable and reliable.
For optimal charging and discharging performance, the Fronius Reserva can be optimally combined with the hybrid inverters GEN24 Plus and Verto Plus (coming soon). Thanks to the Solar.web monitoring platform, all information and processes can be kept in view at all times.
The most important technical details:
|
|
Reserva 6.3 |
Reserva 9.5 |
Reserva 12.6 |
Reserva 15.8 |
| Number of battery modules | 2 | 3 | 4 | 5 |
| Usable capacity | 6,31 kWh | 9,49 kWh | 12,63 kWh | 15,79 kWh |
| Rated voltage | 204,8 V | 307,2 V | 409,6 V | 512 V |
| Protection class | IP 65 | |||
| Ambient temperature range | -20 to +55°C | |||
| Permissible humidity | 5-95 % | |||
| Certificates and compliance with standards | IEC62619:2022; CE; VDE 2510-50; IEC62477-1; UN38.3 | |||
| Interfaces | RS485 | |||
| Warranty | 10 years | |||
Further details about the product, for example the technical documentation with the data sheet and an overview over the compatible inverters, can be found on the Fronius product page.
The Fronius Reserva can already be ordered from us and is expected to be delivered from May 2025. As usual, you can find your purchasing conditions in our QuickShop. Our sales team is looking forward to your order and will be happy to answer any questions you may have.
