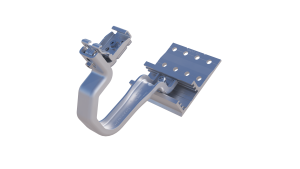

The latest addition to the ESDEC ClickFit EVO portfolio is the Roof hook PRO. Designed to withstand even tough environmental conditions, it provides an ideal foundation for mounting solar modules on tiled roofs.
The Roof hook PRO can be securely mounted to rafters or solid wood panels with screws. The solar modules can be attached with the roof hook in both vertical and horizontal format. The modules may have a frame height of between 29-50 mm and a frame width of at least 12 mm.
The advantages and features at a glance:

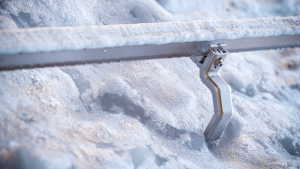

- Resistant to snow and wind load
- Adjustable in height
- Securely fastened to rafters with screws
- Quick and easy installation with the unique ClickFit EVO connection
Unlike the truss hook, the Roof hook PRO can be adjusted both horizontally and in height and also ensures that the distance between the tile and the roof hook is maintained.
Product specifications:
- Material: Aluminum base plate, Magnelis steel hooks
- Adjustability: Horizontally adjustable and three height options: 35.5 mm, 43.7 mm and 51.9 mm
- Base plate width: 105 mm
- Clicker: Fixed for extra strength (not rotatable)
- Suitability: Covers the regular applications in Germany
- Accessories: T40 wood screws (100 mm and 120 mm)
Link: Product sheet Roof hook PRO
Link: Manual Roof hook PRO
Link: Technical drawing Roof hook PRO
All functions and the assembly are presented in detail in this video.
The ClickFit EVO Roof hook PRO is already integrated into ESDEC's online tools and can be ordered. Details on availability and your purchasing conditions can be found as usual in the QuickShop. Our sales team looks forward to receiving your inquiries and orders.
