Rozkład Modułów

Na ilu oddzielnych polach na dachu będą rozłożone moduły uzależnione jest także ilości komponentów konstrukcji nośnej. W przypadku systemu konstrukcji wyniesionych, każdy rząd musi być jako oddzielne pole modułu liczone. Szególnie skomplikowane lub nieregularne pola modułów mogą spowodować wyższe koszty materiału. Czynniki te mogą być uwzględnione poprzez prawidłowe określenie ilośći pól modułów.

Kable , wtyczki, ochrona przeciwprzepięciowa

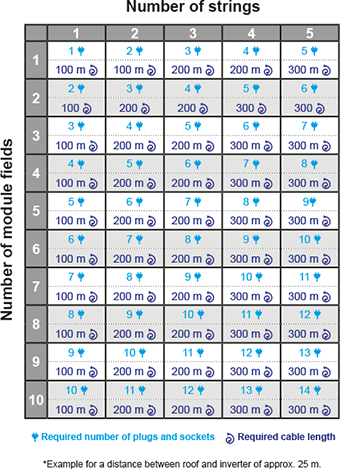

Ze względu ubezpieczeniowych dla każdej instalacji fotowoltaicznej wymagana jest obowiązkowo ochrona przeciwprzepięciowa, która musi być kompatybilna z systemem. Wymagana liczba wtyczek i długości kabla zależy m. in. od liczby pól modułów i ciągów stringów. Poniższa tabela pomoże Ci w przybliżeniu kalkulacji:

Proszę zwrócić uwagę:
Określenie tej ceny szacunkowej oparte jest na średniej założonej cenie i stanowi wstępną orientację dla Twojego klienta. Nie jest ceną wiążącą. Dla poniższych obliczeń kwota stanowi tutaj obliczonia z Twojej kalkulacji dla klienta końcowego.
